Close Up

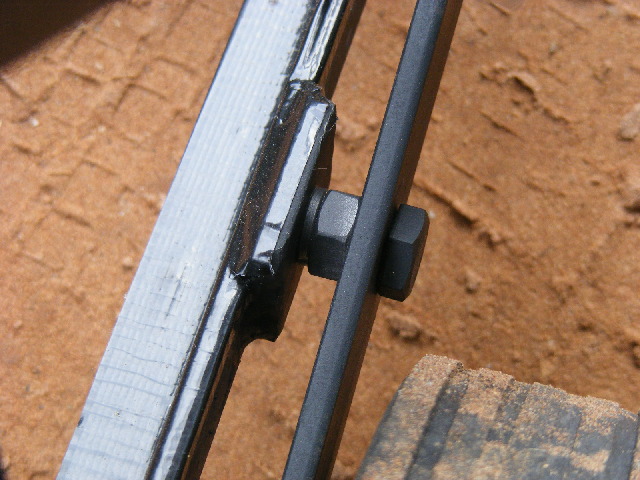

Suspension bar Frame Pivot

The middle of the suspension bar attached to the frame. 10mm bolt. Frame is tapped.

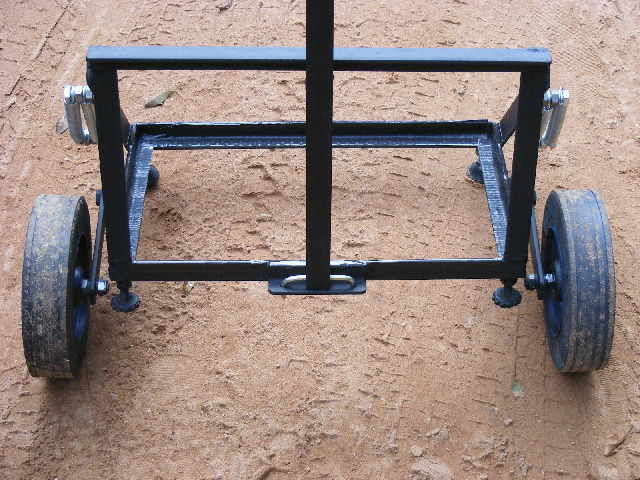

Frame Close-Up

Frame complete, up closer. There is a rubber tipped support leg on each corner for when the case is used as a chair.

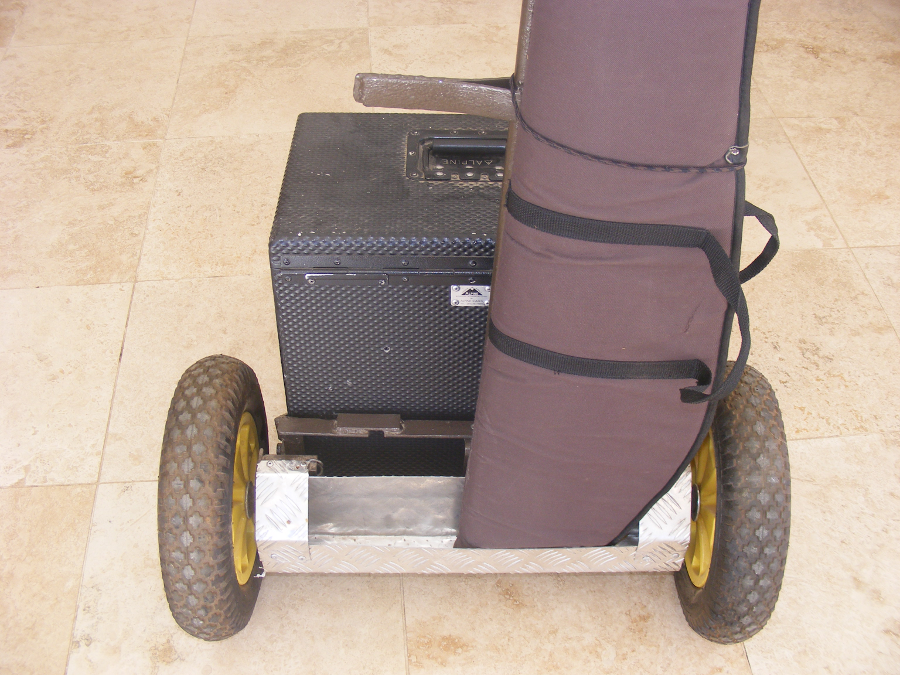

Modified base.

Modified to store bagged rifles.

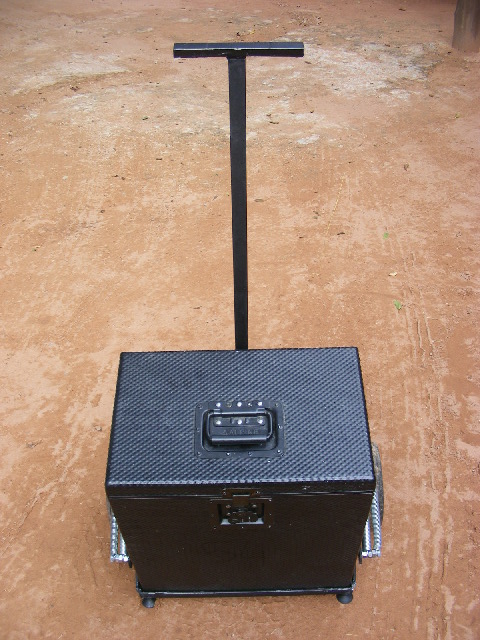

The Seat

The frame holds the box, and the assembly is just the right height to sit on as well. The springs flatten out and the frame rests with the four corner legs on the ground.

Modified frame and modified box.
