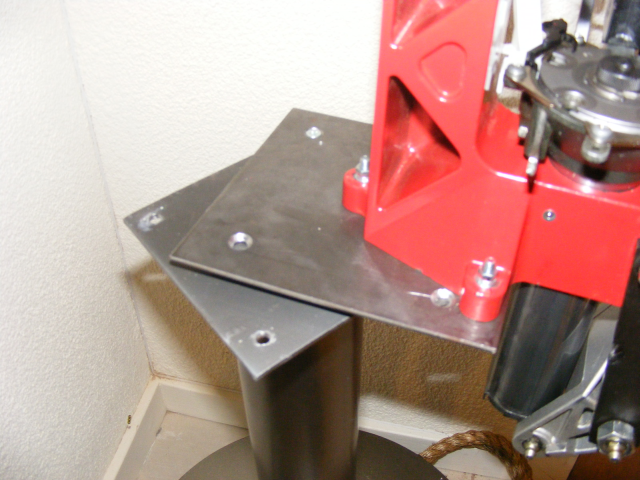

Press Removal 1

This shows the press with it's mount-plate being removed from the press stand. Note the plate below it which is the top of the stand,

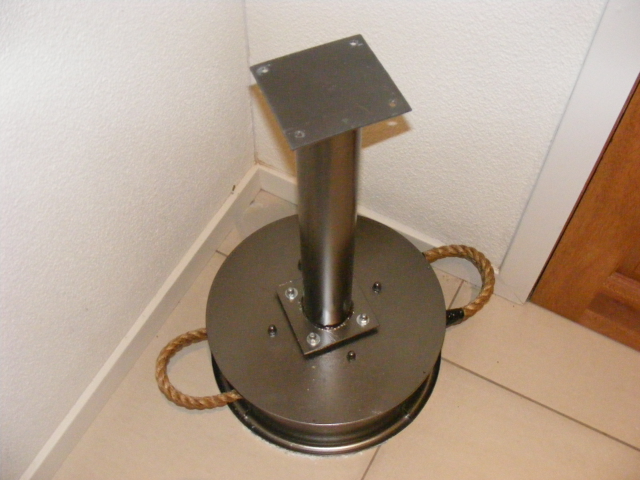

The Naked Press

The stand with the press removed.

Press Detatched

A Lee Loadmaster Press with it's mount plate. The mount-plate on the press does not need to be removed, and remains permanently on the press.

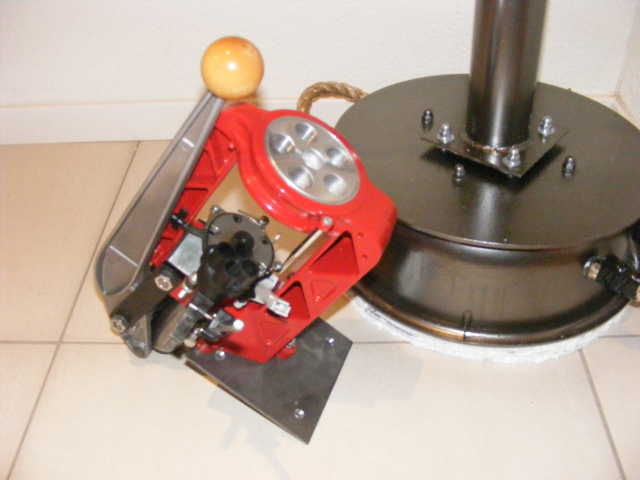

Unit Dis-Assembled

The base seperates from the upright, which also seperates from the press itself.

This makes it easy to pack inside a trunk with the rest of the luggage.

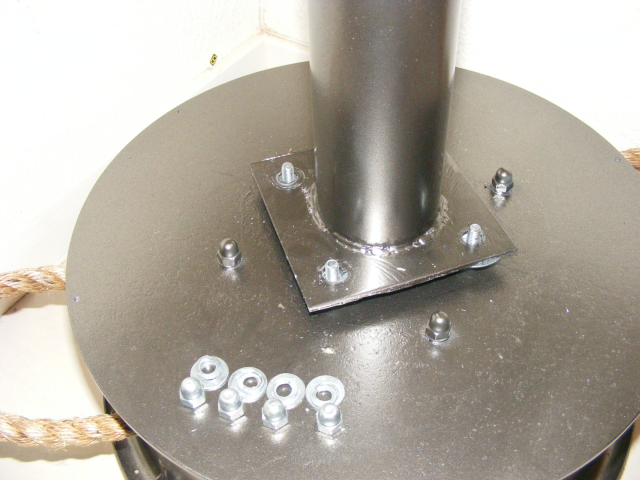

The press stand is bolted to the press base with four nuts. I used dome nuts to protect the threads while transporting and moving around.

The press stand with the nuts removed, and the stand ready to detatch from the base.

Press Stand 2

Press stand off the base. Note the fender washers that are between the press stand and press base.

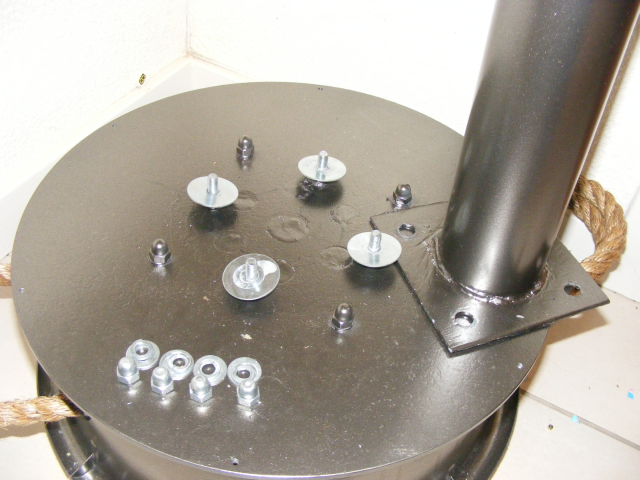

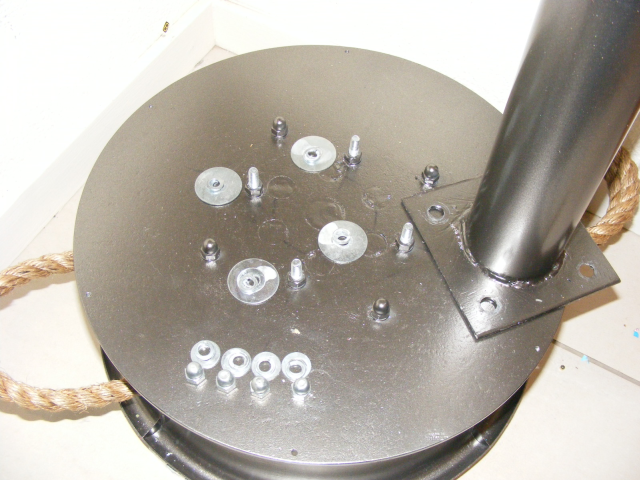

Press Stand 3

Press stand and press base seperated, and all washers removed. The nuts locking the threaded bar to the base are visible.
